Secraft Wing Bolts 1/4-20 V2 (Al-Screw Lock Type) (Blue)

Secraft Wing Bolts 1/4-20 V2 (Al-Screw Lock Type) (Blue)

enlarge-icon  Click On Images to Enlarge

Overview

Secraft Wing Bolts 1/4-20 V2 (Aluminium Screw Lock Type).

Nut: Aluminium 6061-T6
Bolt: Aluminium 6061-T6

Total Weight: 22.8g (2per)
Al Bolt length: 40 mm
2 per package

Colour: Blue

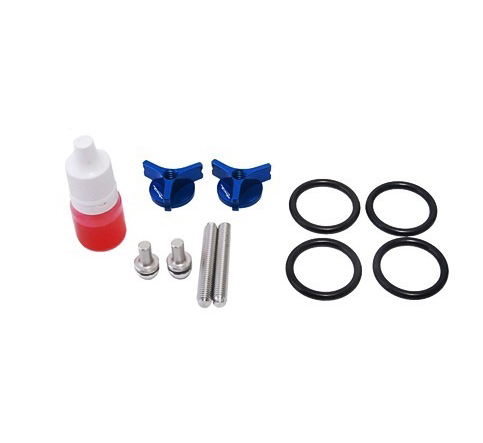

Includes:

  • O-Ring P24: 4pcs (2pcs Spare)
  • Wing Nut: 2pcs Diameter: 30mm Thickness: 11mm
  • Wing Bolt 1/4-20 x 40mm: 2pcs
  • M3 x 10mm Bolt: 2pcs
  • M3 Bolt Washers: 2pcs
  • Lock Pin: 2pcs
  • Treadlock: 1 bottle

There are two methods of installation for these wing bolts

Method 1
  1. Put the thread lock to on screws then build with the aluminum nuts.This is the use method which is general.
Method 2
  1. Put the thead lock to on wing nuts.
  2. Build your airplane with wings.
  3. Adjust the screws with wings nuts to suitable length.
  4. Make the aluminum nuts with the screws and should wait almost five hour.
  5. Finished appearance.
installation guide
Secraft logo

Order Code: SEC260
Manufactured By Secraft

pound-sign Click for Price & Availability

shop-icon Find Your Local Stockist

Video

Secraft Wing Bolts V2 (Al-Screw Lock Type)
