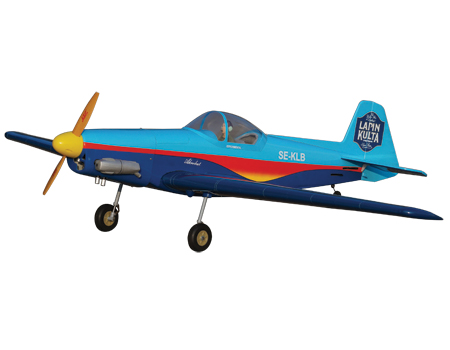

Zlin 526 Akrobat 63.4in Wingspan ARF

Zlin 526 Akrobat 63.4in Wingspan

Additional Images:

Zlin 526 Akrobat 63.4in Wingspan
Zlin 526 Akrobat 63.4in Wingspan
Zlin 526 Akrobat 63.4in Wingspan
Zlin 526 Akrobat 63.4in Wingspan

enlarge-icon  Click On Images to Enlarge

Overview

Zlin Aircraft originally designed the Z-526 in 1959. Its two-seat version is called the Trener-Master.

The Z-526's layout was organised with the pilot in the rear, and the student in front. The aircraft could be equipped also with tip tanks and a constant speed propeller. The Z-526F was introduced in 1968 and was equipped with a 135 kW (180 hp) Avia M 137A engine, the export version Z-526L differing by being equipped with a 150 kW (200 hp) Lycoming AEIO-360 flat-four. Single-seat versions included the Z-526A, Z-526AS, and the Z-526AFS.

More than 1,400 Z-526s were manufactured, many for military and private flying schools. .

Now, VQ Introduces the Zlin 526 .55 size EP-GP. This Zlin 526 come with 2 scale flaps, 1 x painted pilot, Scale spinner and many scale detail inside cockpit will make your Zlin 526 look like a real one.

With the big battery hatch, you can use both Electric motor or Nitro engine.

As an option, the Electric retracts with scale struts are a good choice for this Zlin 526, It make this Zlin 526 become one of the best Balsa scale Civilian 50 size in the market.

Features:

  • All Balsa and Light-Ply construction
  • Magnetic top hatch provides easy access to flight battery
  • Prepainted fibreglass cowling

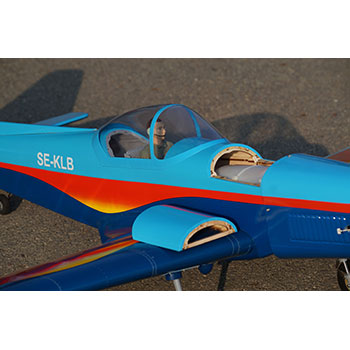

  • Cockpit accessories included and installed
  • Choice to use either electric or glow power
  • Fixed undercarriage (Electric retracts sold separately - VQARE31)

Includes:

  • Assembly instructions with stage-by-stage illustrations - [ Download ]
  • Fuselage, wing and fin made of wood and plywood structures covered with a printed PVC covering.
  • Fibreglass cowling
  • Cockpit accessories
  • Decals and all hardware

Required Hardware (Not Supplied)

Transmitter, Motor, Propeller, Servos, Battery, Extension Leads, Glue, Tools and Silicone Fuel Line (For GP).

Recommended Hardware (Not supplied)

Specifications

Wingspan:63.4in (1610mm)
Fuselage Length:46.8in (1190mm)
Weight (RTF):3.4 ~ 3.5 kg (Will vary with equipment in use)
Engine:.55 (2-Stroke) or .82 (4-Stroke)
Radio:6 Channels with 7 servos (6 for electric) (2 Standard, 5 x Mini)
Electric Motor:Electrospeed Boost 40 brushless motor

Related Products/Optional Parts

E-Retracts for Zlin Akrobat

E-retracts with Struts for Zlin 526 Akrobat

VQARE31

View Product

Electrospeed Boost 40 Power Pack

MG1703DS 3.3Kg.cm/0.10s Midi Digital Servo

MAC1703

View Product

MacGregor MG5510DS Digital Servo

MG5510DS 9.98Kg.cm/0.12s

MAC5510

View Product

VQ Model logo

Order Code: VQA153SW
Manufactured By: VQ Models
