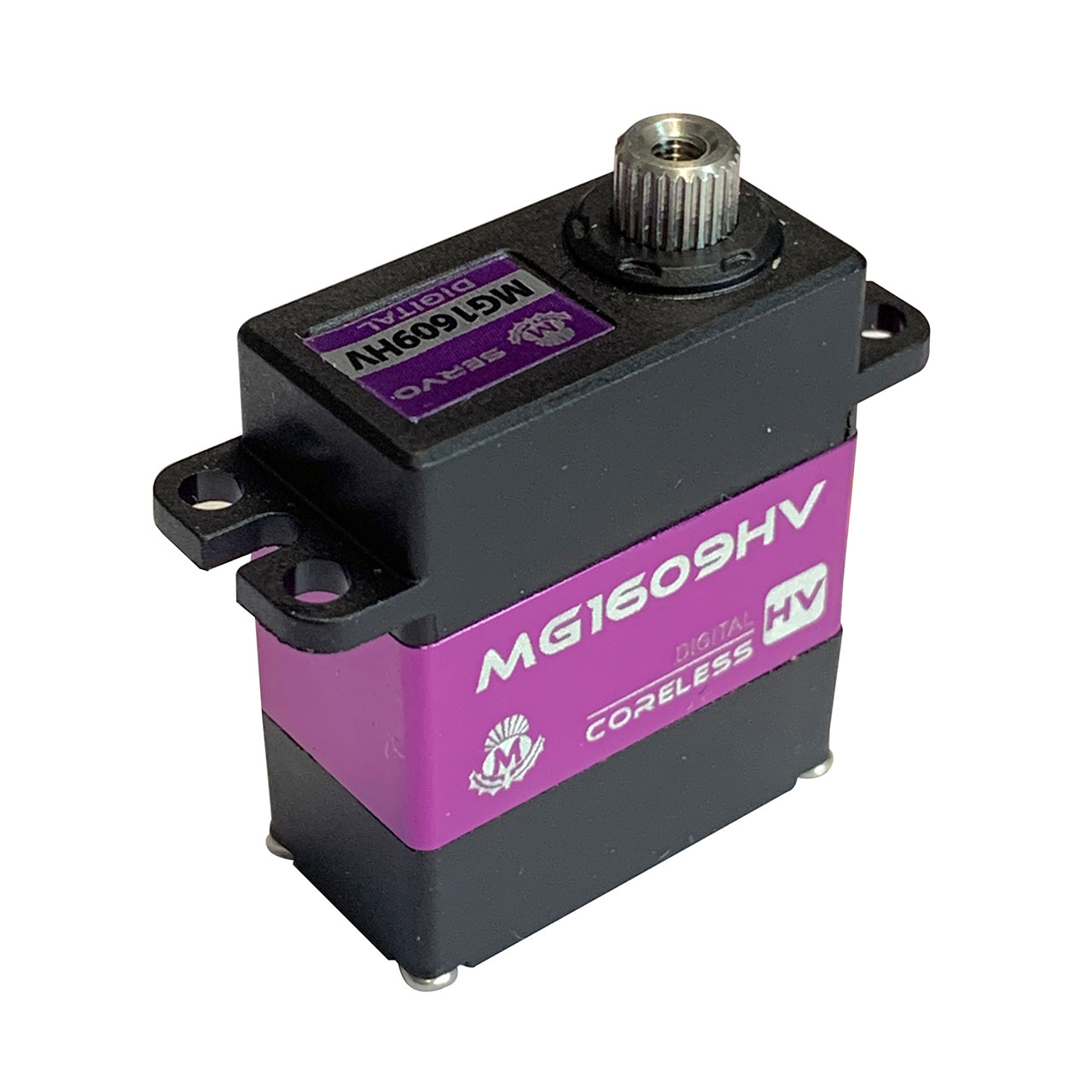

MG1609HV 8.9kg/0.07s High Voltage Micro Servo
Buy On Hobbyplastic.co.uk
Find Your Local MacGregor Stockist
Click On Images to Enlarge
Overview
MacGregor MG1609HV 8.9kg.cm/0.07s High Voltage Micro Servo ideal for 49in EPP foam aircraft and throttle applications.
Features
- High Performance High Voltage Coreless Digital Servo
- High-Precision Metal Gears With Hard Anodising
- Dual Bearing Support
- Metal centre case to act as a Heat Sink
- JR Style Lead and Plug
- 25 Tooth Spline (Futaba Style)
Specifications
| Operating Voltage: | DC 4.8 - 8.4V |
|---|---|
| Dead Band: | 2µs |
| Working frequency: | 1520µs / 330hz |
| Motor: | Coreless Motor |
| Operating Speed (4.8V): | 0.10sec/60° |
| Operating Speed (6.0V): | 0.09sec/60° |
| Operating Speed (8.4V): | 0.07sec/60° |
| Stall Torque (4.8V): | 4.9Kg.cm |
| Stall Torque (6.0V): | 6.7kg.cm |
| Stall Torque (6.0V): | 8.9kg.cm |

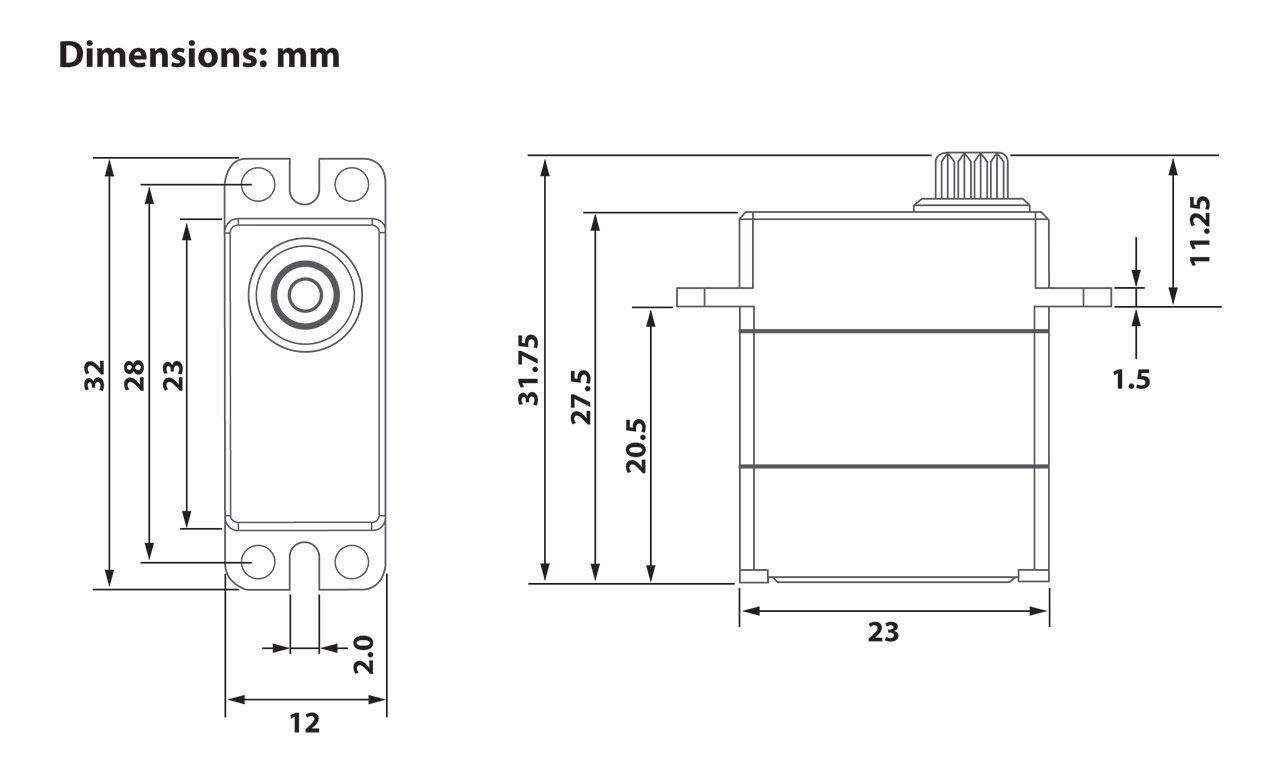

| Dimensions: | 23 x 12 x 27.5mm |
| Weight: | 16 |
| Spline: | 25T (Mini) |
| Connector, Wire Length: | JR Style, 200mm |
Related Products
Order Code: MAC1609HV
